Technical Specifications

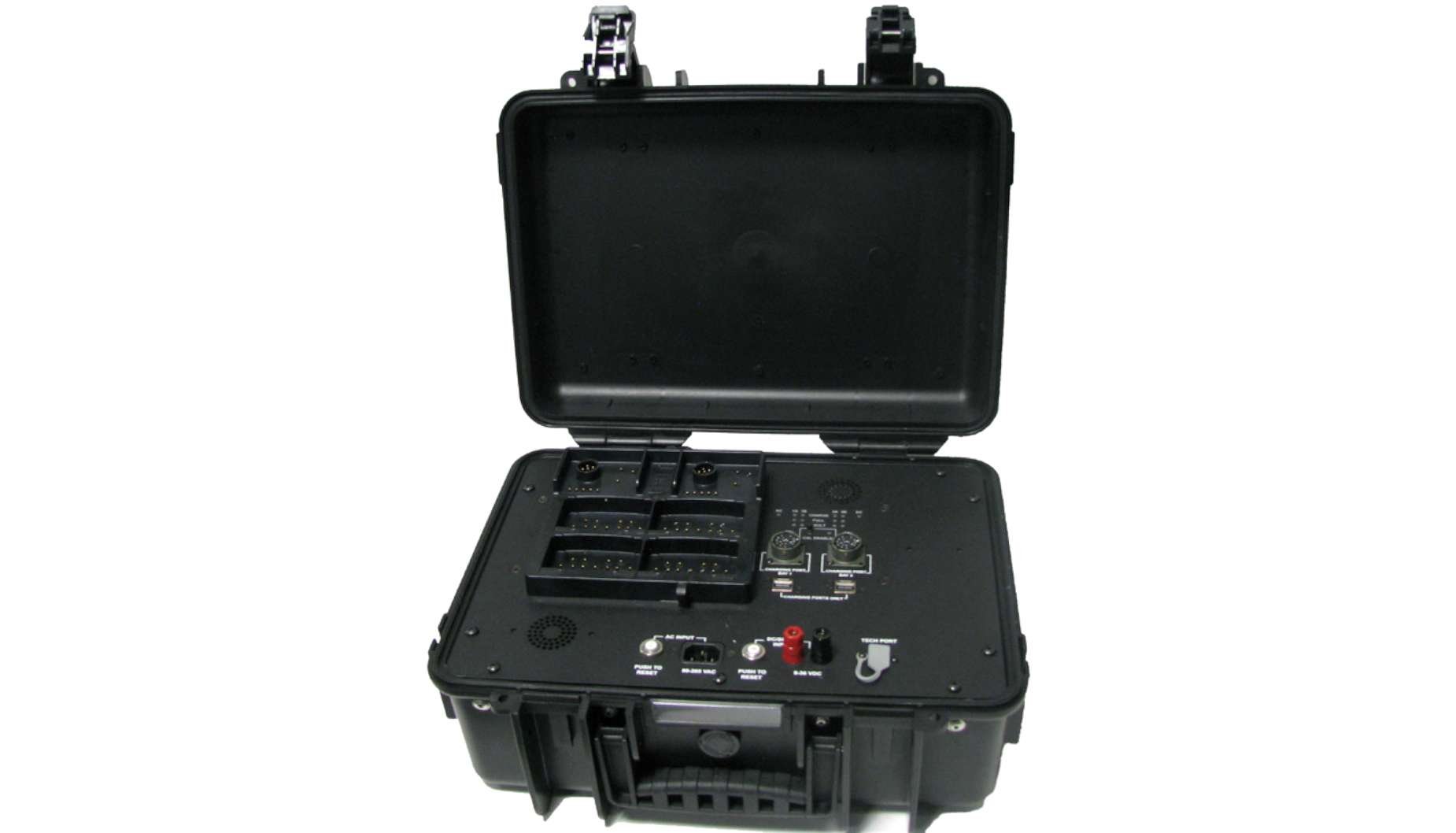

Part No.1

UCH0054-XX

AC Input

100-240VAC, 50-60Hz

DC Input

9 to 36VDC

Charge Rate

Up to 1.0A per string for BB-390/590 batteries

Up to 2.0A per string for AN/PRC152, AN/PRC148,

RF7800, RF330, RF7850 handheld batteries

Up to 3.0A per string for BB-2590/UBI-2590 batteries

Battery Types

Any combination of the following batteries:

BB-390/U - Nickel Metal Hydrate (NiMH)

BB-590/U - Nickel Cadmium (NiCd)

BB-2590 / UBI-2590 (UBBL02) / UBBL09 / UBBL10 /

UBBL10-01 / UBBL13 / UBBL13-01

PRC-148 and PRC-152 batteries

USB devices (x2)

User Interface

Indications received when:

- Input power is applied (as well as type)

- Internal or external batteries are being charged

- Battery is being detected

- Battery is being fast charged

- Battery is being slow charged

- Battery has completed charge

- Battery requires calibration

- Battery is being calibrated

- Battery or the charger bay has a fault

Size

42cm (16.54in) x 32.7cm (12.87in) x 18cm (7.09in)

Weight

5.7kg (12.6lbs) without batteries

Operating Temperature2

-30°C to 55°C (-22°F to 131°F)

Storage Temperature

-40°C to 71°C (-40°F to 159.8°F)

Operating Altitude

50,000 ft. (15,240m)

Safety

Designed for UL and CE certification (pending)

Accessories Included

AC and DC Cables - US

Accessories Optional

AC Input Cables - AUS, UK or EUR

UCA0148: charging cable for some UBBLXX batteries

Notes

1. Order suffixes:

-01: Power supply equipped with US, NEMA, 5-20 A/C cable

-02: Power supply equipped with AS, AS/NZS 3112 A/C cable

-03: Power supply equipped with UK, BS 1363 A/C cable

-04: Power supply equipped with EU, CEE 7/7 A/C cable and can be shipped under Packing Instruction 968, Section II. NSN: 6130-01-669-0445

2. Charger will only charge the batteries within the battery’s specific allowable temperature range.
