Produktnr

Navn

Forsvarsprodukter



System 50 Single Tube Masts



950-202000

System 50 2m single tube mast

950-203000

System 50 3m single tube mast

950-204000

System 50 4m single tube mast

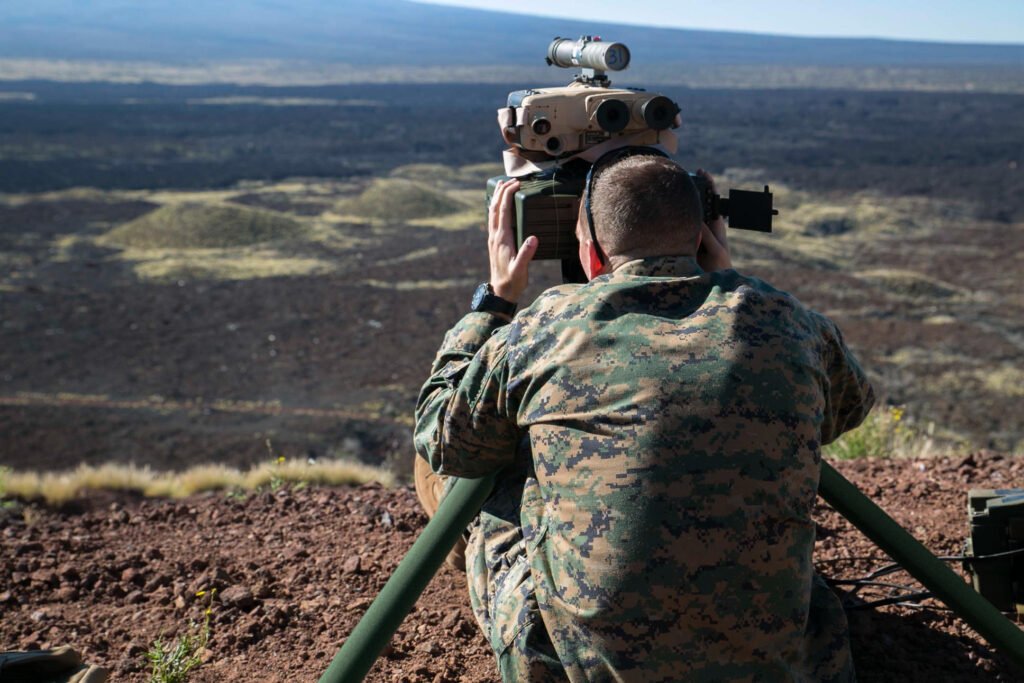

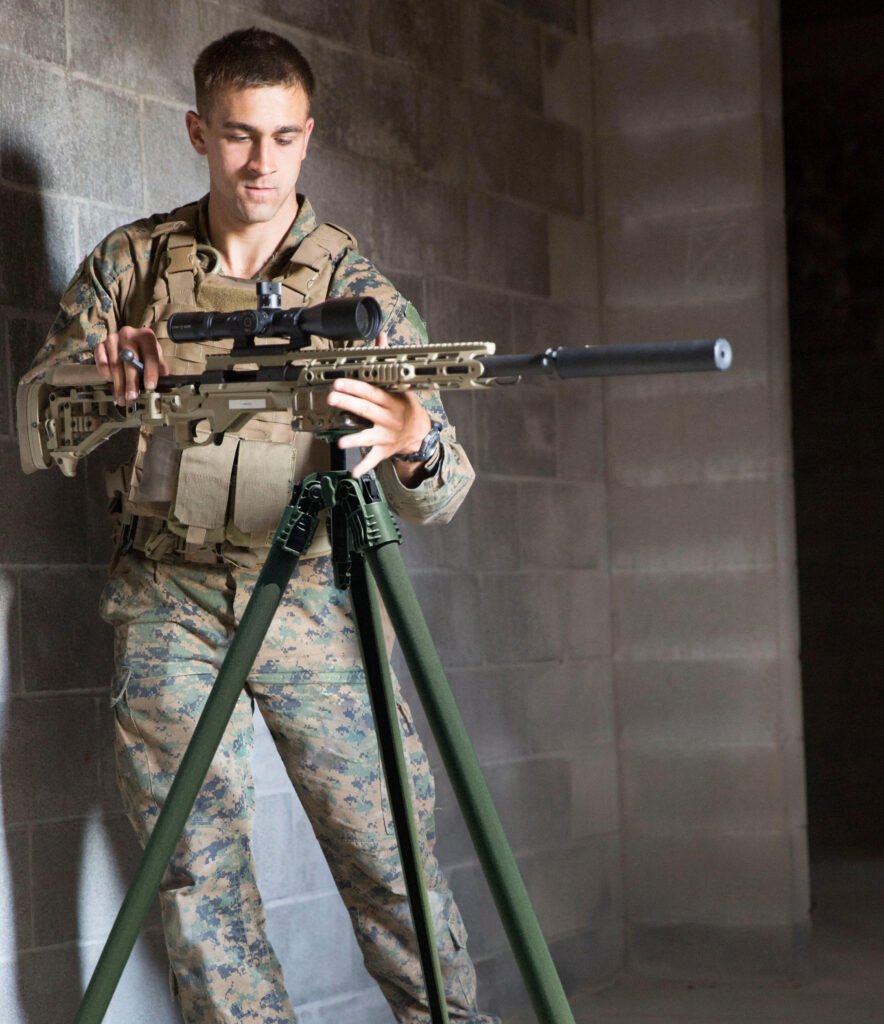

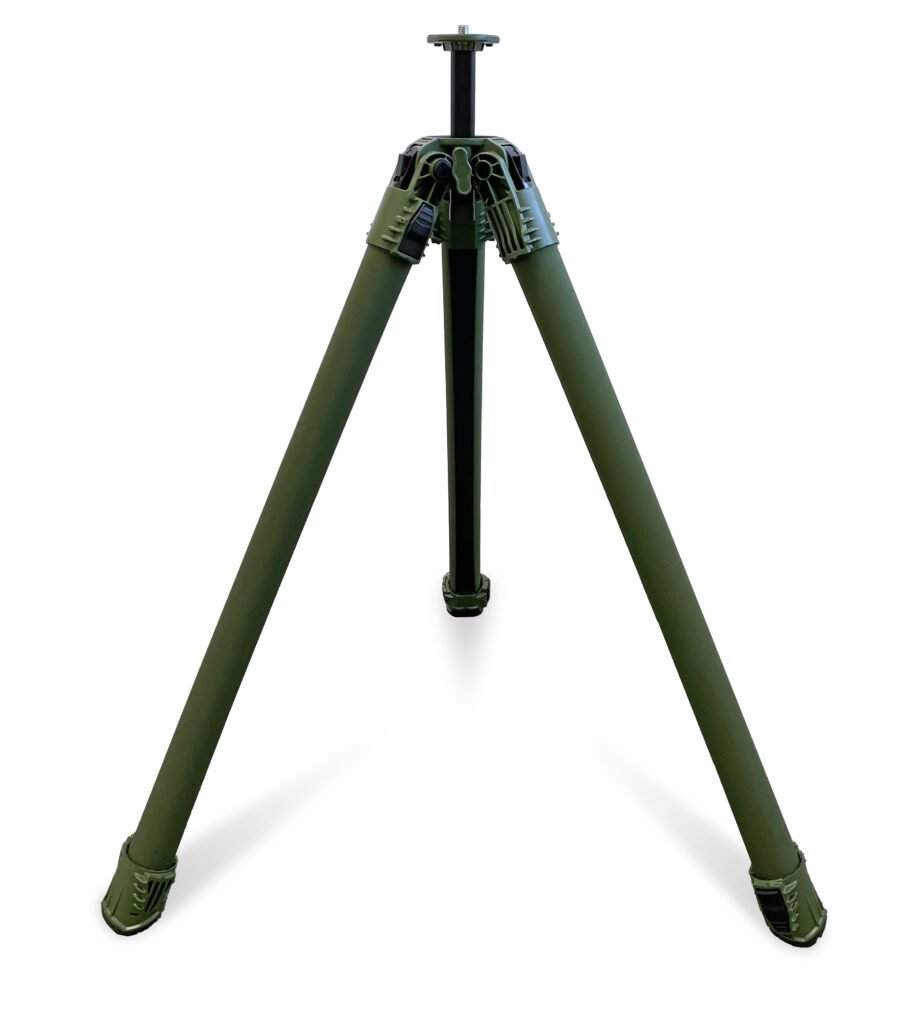

System 50 Tripods



953-201000

System 50 1m tripod

953-202000

System 50 2m tripod

953-203000

System 50 3m tripod

System 75 Single Tube Masts



950-303000

System 75 3m single tube mast

950-304000

System 75 4m single tube mast

950-305000

System 75 5m single tube mast

950-307000

System 75 7m single tube mast

System 75 Double Tube Masts

950-303200

System 75 3m double tube mast

950-304200

System 75 4m double tube mast

950-305200

System 75 5m double tube mast

950-307200

System 75 7m double tube mast

System 75 Combination Systems

956-304000

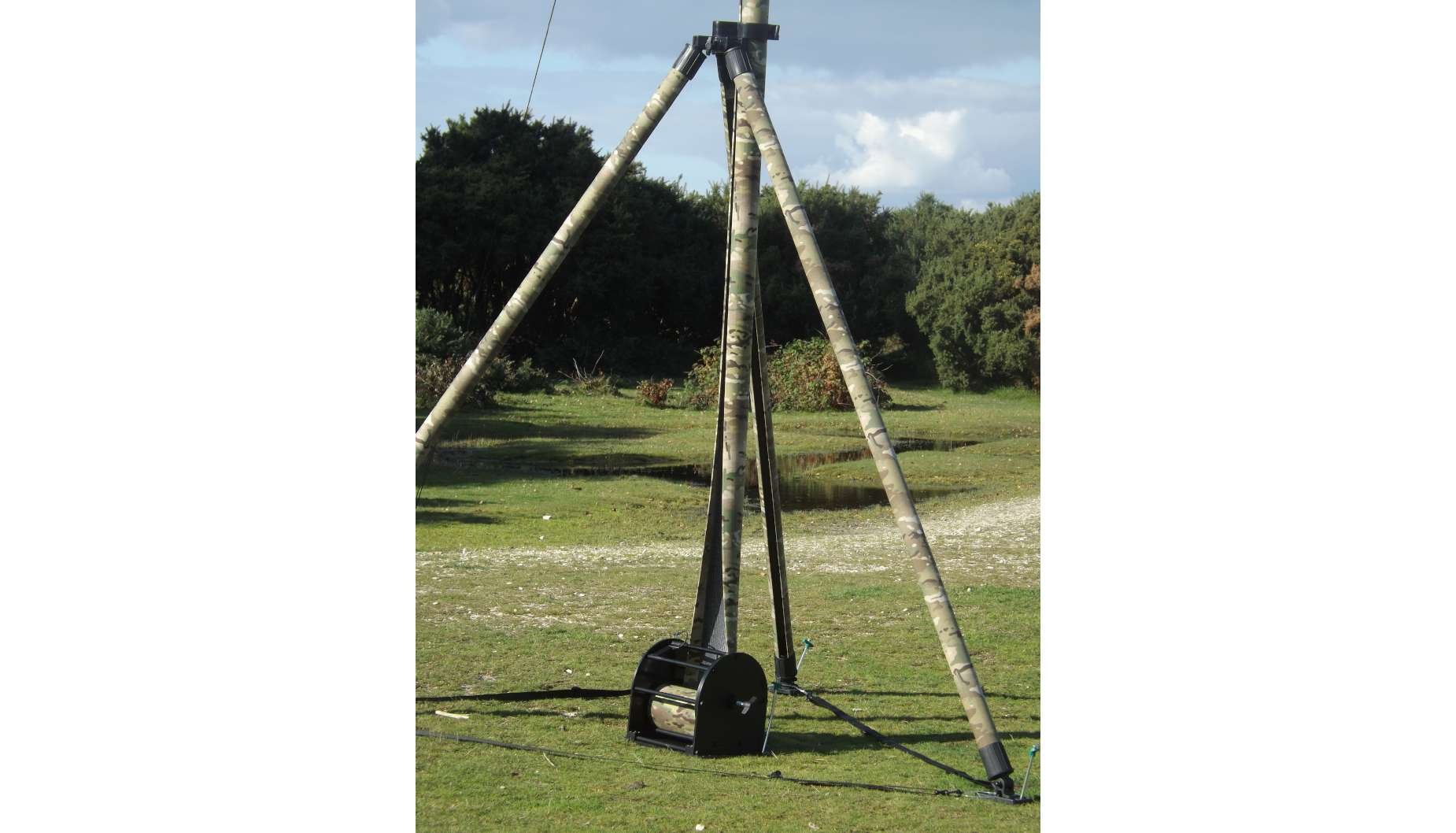

System 75 4m mast/Rolacage

956-305000

System 75 5m mast/Rolacage

956-307000

System 75 7m mast/Rolacage

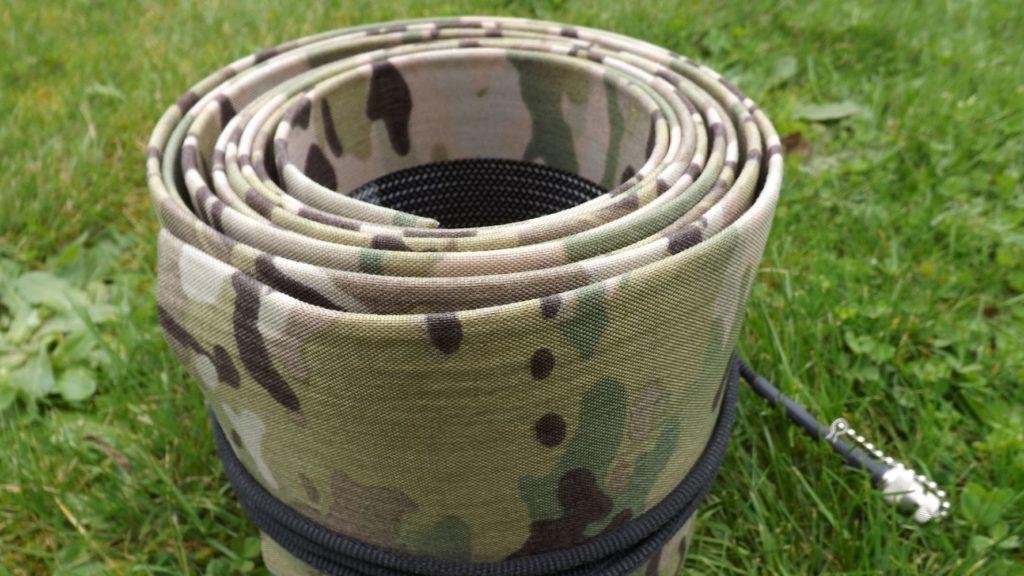

System IAM (Integrated Antenna Masts)



952-203500

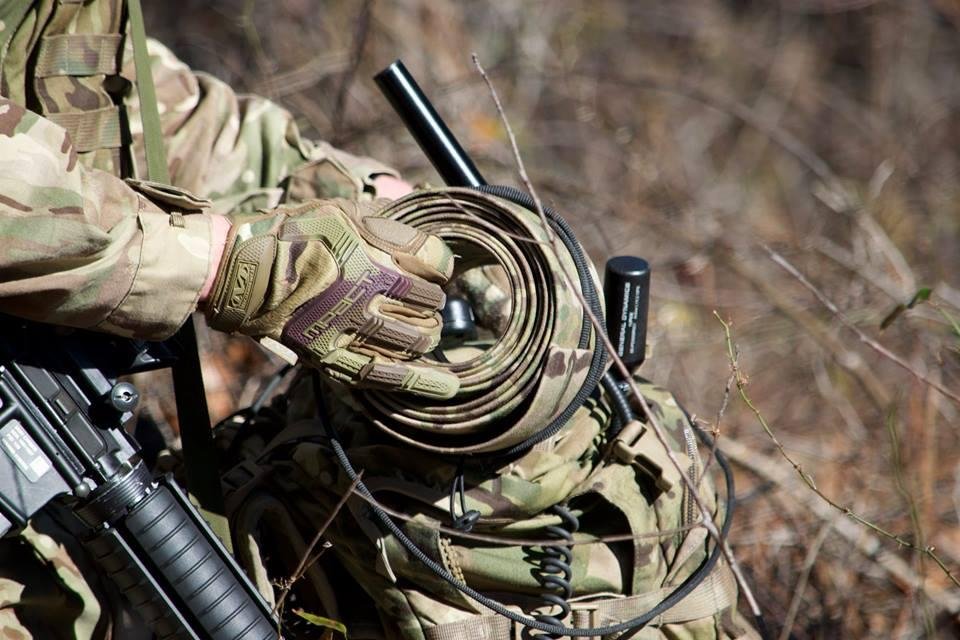

System IAM 3.5m SQUAD (30-300 MHz)

952-203501

System IAM 3.5m TEAM (136-470 MHz)

952-307003

System IAM 7m IAM-V (VHF: 30-88 MHz)

952-307004

System IAM 7m IAM-U (UHF: 225-512 MHz)

952-307005

System IAM 7m IAM-D (Dual Band: 30-88 & 225-512 MHz)

System 100 Single Tube Mast/Rolacage

956-408002

System 100 8m mast/Rolacage

956-410002

System 100 10m mast/Rolacage

System 50/75/100/Civ Mounting Accessories

207-000094

25cm Spigot mount

207-000035

Spigot reducing kit

207-000029

Camera mounting adaptor

800-000036

Twin antenna T-Bar mount

For use with Double tube mast systems only:

800-001061

Hinged base plate

800-000044

Side mount (Radwin)

800-000032

Side mount (Cambium)

800-000034

Side mount (Cisco)

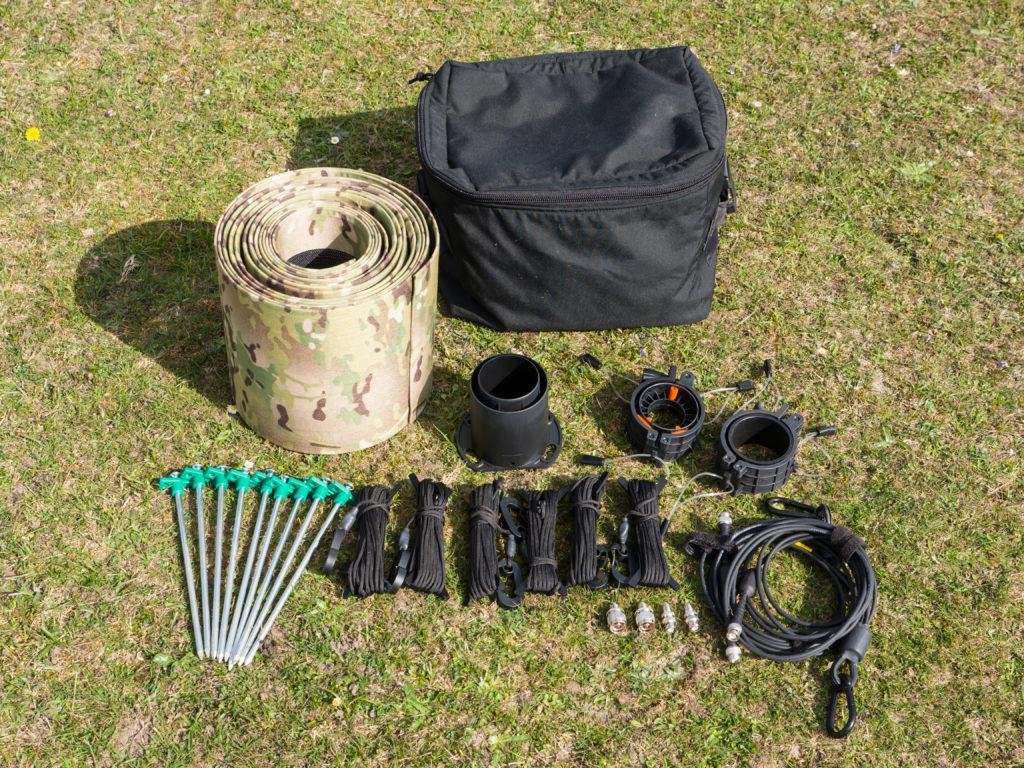

Deployment aids



800-007102

Rolacage

800-000008

Mast support adaptor for System 75/IAM single tube mast

800-000012

Mast support adaptor for System 75 double tube mast

207-300004

Central Guy Control (CGC) for System 75 3m & 4m mast

207-300007

Central Guy Control (CGC) for System 75/IAM 5m & 7m mast

System 100 Deployment aids



207-300010

Central Guy Control (CGC) (note lower top load constraint)

800-000037

Mast support adaptor

Sivile Produkter



System 50 Civ Single Tube Masts

950-203010

System 50 3m single tube mast

950-204010

System 50 4m single tube mast

System 50 Civ Tripods



953-201010

System 50 1m tripod

953-202010

System 50 2m tripod

953-203010

System 50 3m tripod

System 75 Civ Single Tube Masts

950-305010

System 75 5m single tube mast

950-307010

System 75 7m single tube mast

System 75 Civ Double Tube Masts

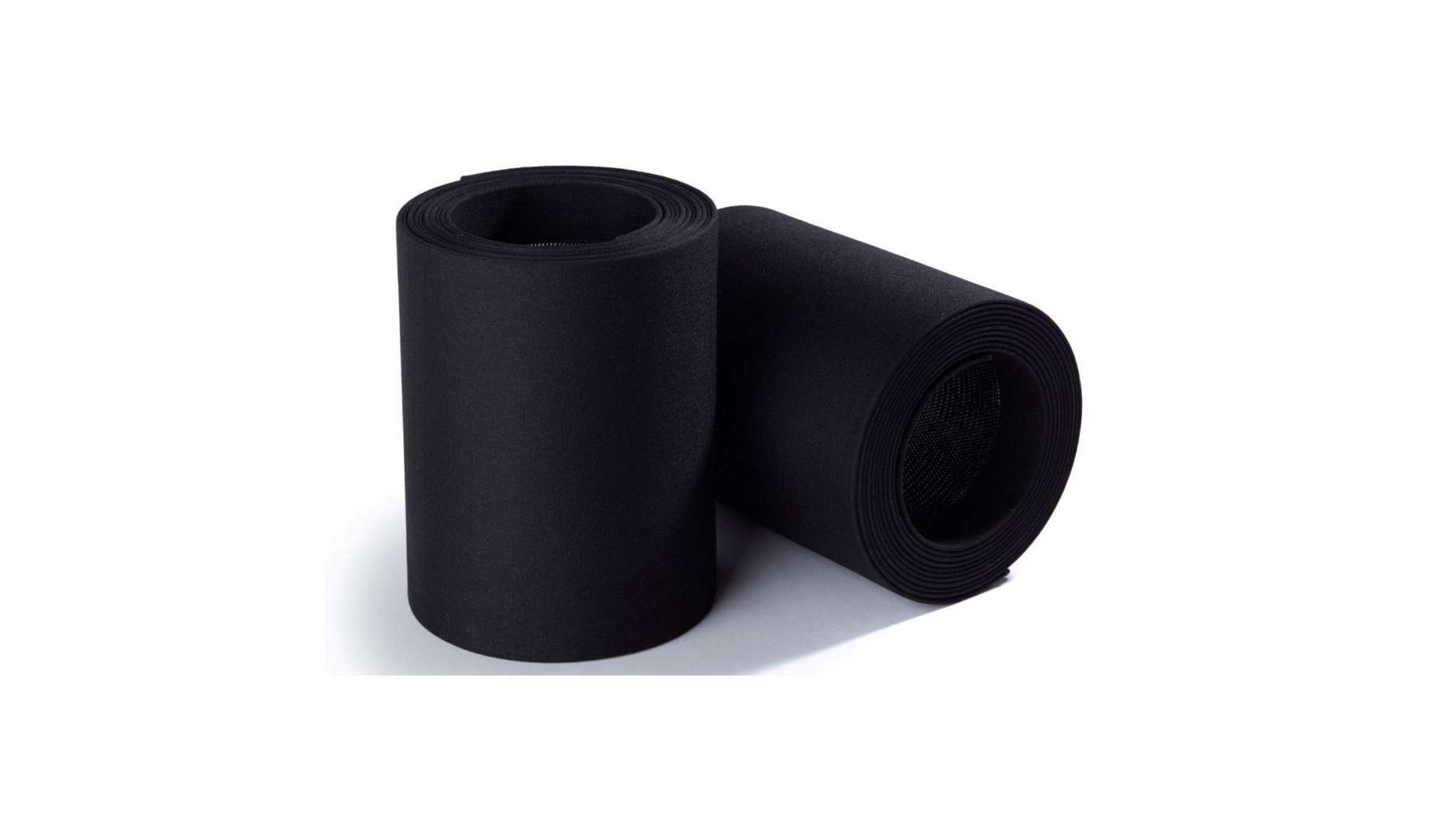

950-305210

System 75 5m double tube mast

950-307210

System 75 7m double tube mast

System IAM Civ (Integrated Antenna Masts Civ)

952-203510

System IAM 3.5m RESQ (136-175 MHz)

952-307011

System IAM 7m RESQ (136-175 MHz)

System

Diameter (mm)

Høyde (m)

Systemvekt (kg)

Topplast (Kg)

SYSTEM 50: Single Tube

51

2 - 4

2,4 – 3,3

3 - 10

SYSTEM 50: Tripod



1

3,6 – 6,2

10 - 30

SYSTEM 75: Single Tube

75

3 - 7

4,5 – 9,4

2 – 11

SYSTEM 75: Double Tube

76

3 - 7

5,8 – 14,8

5 – 23

SYSTEM 100: Single Tube

101

8 - 10

21,4 – 23,4

12 – 15

SYSTEM IAM: 3.5m

51

3,5

2,7 – 2,9



SYSTEM IAM: 7m

76

7

7,9 – 8,4





Farger:

Defense Products

Civilian Products

-3-1 Black

-3-1 Black

-1-1 Multicam

-5-1 Orange

-6-1 Multicam Alpine*

-7-1 Blue

-8-1 Multicam Arid*



*MOQ 5 units
